Wingy?Balloon expansion catheter

Overview

As a new generation of high-pressure non-compliant balloon, Wingy® is suitable for high-resistance lesion expansion or post-expansion after stent implantation, and provides more options for precise cardiac intervention therapy.


Features


1.Outstanding high pressure resistance

The rated burst pressure of 20atm better meets the needs of high-pressure expansion


2.Very small balloon inflation rate to ensure precise inflation

Within the working range (NP-RBP), for every atm increase, the diameter increase is only 0.6%


3.Excellent passability & pushability

Smooth transition of the fine tip, easy to pass through narrow lesions
Very small balloon outer diameter, providing good passability
Unique hypotube design to ensure excellent control experience
Patented coating technology makes it easier to push


Specification model

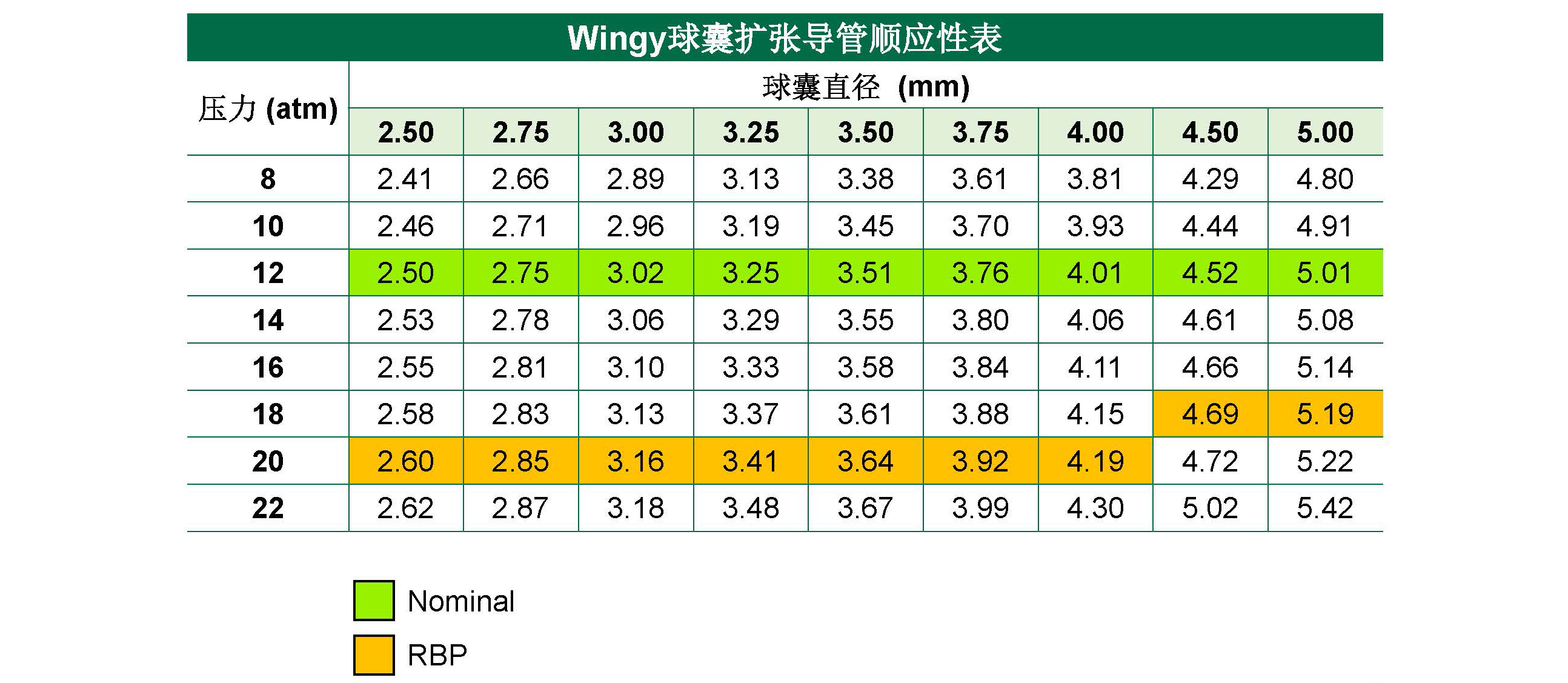

Wingy?Balloon expansion catheter(圖1)

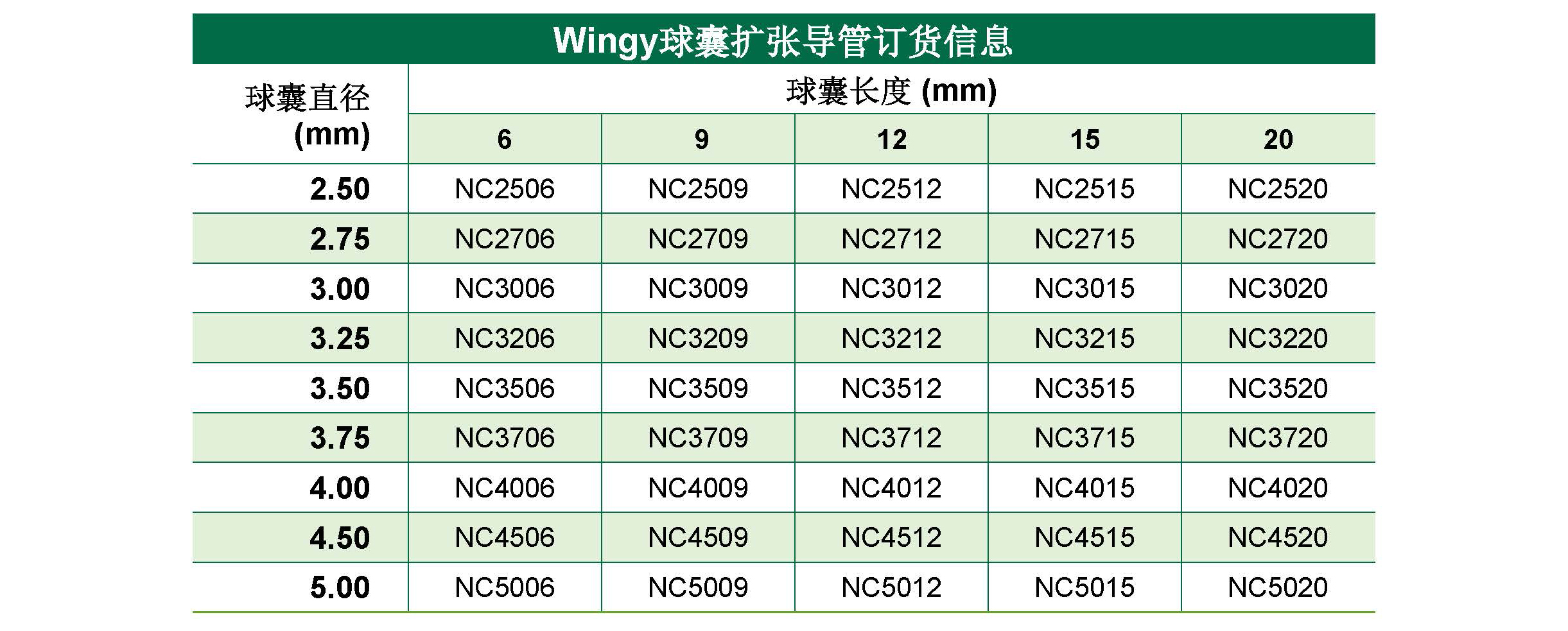

Wingy?Balloon expansion catheter(圖2)

Registration Message

Medical device name: balloon dilatation catheter (trade name: Wingy)
Medical device manufacturer name: Liaoning Yinyi Biotechnology Co., Ltd.
Medical device registration certificate number: National Machinery Approval Note 20193030117
